河南科宇电缆有限公司起重机械电缆
河南科宇起重机扁电缆线展示河南科

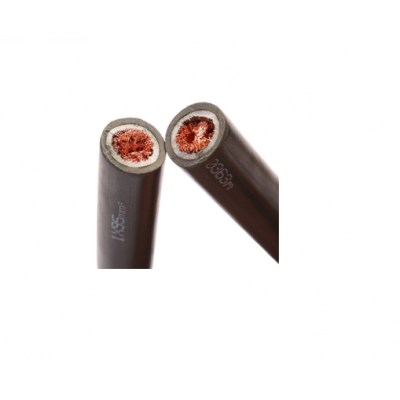

河南科宇起重机圆黑色电缆线实拍河
河南科宇起重扁电缆线祝您月月顺利

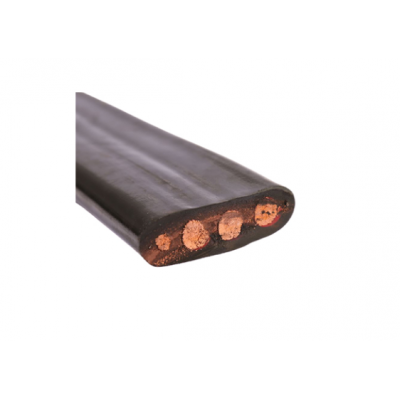

高耐磨抗开裂扁电缆(型号:HAR-F(X)BLDZFLEX-UD)
应用范围：改进的结构设计和精准的材料选择使扁电缆在经常性的弯曲使用及在有一定拉伸力的情况下的使用更安全，使用寿命更长(是普通橡套电缆的3-4倍），有优异的耐油性能和化学性能，优异的耐开裂性能进一步保证了电缆的安全性、降低了电缆的维护和使用成本。高耐磨抗开裂扁平电缆广泛应用于起重机、各型行车、卷筒和龙门吊等设备。
电缆应用
扁电缆:作为动力及控制电缆安装在轨道,起重机,物流输送等场合。广泛应用在起重、运输、机械、电气、矿山、冶金,电力,铁路,水利,港口码头,码头,室内外仓库,厂房,码头和露天贮料场等行业的各种移动设备装置的电源连接及信号控制等;适用于频繁移动弯曲环境下、升降机械设备等,比如行车、行吊、 起重机、电梯、移动伸缩门、船用吊机等。
电缆性能
具有以下特点:绝缘和护套等用扁电缆专用丁腈复合料;提高电缆柔软特性以及防腐耐寒等性能;可按客户使用要求,在线芯两侧增加钢丝绳用来加强电缆的抗涨强度。可以随设备连续弯曲使用,具有超强的弯曲性、高柔性、耐磨性、耐油污、耐腐蚀、耐寒性、防紫外线、防水、阻燃、抗张力等性能。
电缆结构
电缆结构标准：参照GB5023-2006 PART6类标准导体：符合DIN VDE（或IEC 60228）中6类标准
绝缘：特种定制复合绝缘料，有优异的抗拉强度和绝缘电阻指标 绝缘标识：符合DIN VDE 0293标准
外护套：特种定制柔软抗开裂弹性体护套料，极佳的抗拉强度和撕裂强度指标，黑色，符合RAL9005要求
特性指标：工作电压U/U0：S≤0.75mm2,300/500V，S≥1.0mm2,450/750V,测试电压2500V,50HZ,5MIN70°C时绝缘电
阻更好小值：20MΩ.KM
温度范围：移动按装：-10～+70°C（可根据要求设计），固定按装：-40～+80°C
更好小弯曲半径：移动按装：7.5*电缆外径， 固定按装：4.5*电缆外径
建议事项:
芯线单排一字型排列时:悬挂长度>40m 移动速度>2m/s 建议增加承力钢丝或纺纶纱芯线梅花型绞合排列时:悬挂长度>80m 移动速度>4-10m/s建议增加承力钢丝。
产品型号涵盖:1-60芯,0.2-180平方所有型号
注:可根据用户个性化使用要求及复杂使用环境来量身定制,努力践行为广大用户朋友排忧解难的宗旨!
河南科宇电缆有限公司成立于2014年，河南科宇电缆有限公司是一家集研发、生产、销售于一体的专业化电线电缆制造企业，专注于为起重机械、船舶工程、特种设备等领域提供高性能电缆解决方案。公司主营起重机电线电缆、扁电缆、船用电缆、吸盘电缆、弹簧电缆及耐高低温电缆等系列产品，同时具备卷筒电缆定制化生产能力，产品广泛应用于港口机械、矿山设备、自动化生产线等严苛工况环境。
Henan Keyu Cable Co., Ltd. was established in 2014. Henan Keyu Cable Co., Ltd. is a specialized wire and cable manufacturing enterprise that integrates research and development, production, and sales. It focuses on providing high-performance cable solutions for lifting machinery, ship engineering, special equipment, and other fields. The company mainly produces a series of products including crane wires and cables, flat cables, marine cables, suction cup cables, spring cables, and high and low temperature resistant cables. At the same time, it has the ability to customize the production of drum cables. The products are widely used in harsh working environments such as port machinery, mining equipment, and automated production lines.
The company's main products include crane specific cables, high and low voltage cross-linked cables, flame-retardant and fire-resistant wires and cables, overhead insulated cables, polyvinyl chloride insulated cables, mining cables, buried wires, anti-aging wires, special cables, cable accessories, copper aluminum wires, plastics, rubber, etc. The company can also produce special cables according to customer needs, strictly following the standards in technology.
With advanced production equipment and strict quality control system, the company's products have won market recognition for their wear resistance, torsion resistance, high flexibility and other characteristics. Koyu Cable always adheres to the concept of "innovation driven, quality-oriented", and has formed a professional technical team to provide customers with one-stop services such as special-shaped cable design, material selection, and process optimization. It has successfully provided special cable solutions for multiple enterprises. In the future, the company will continue to deeply cultivate the field of special cables and strive to become a leading high-end cable customization service provider in the industry.
